ApoorvCTF 2025 - [AI] Pokédex Neural Network Write Up

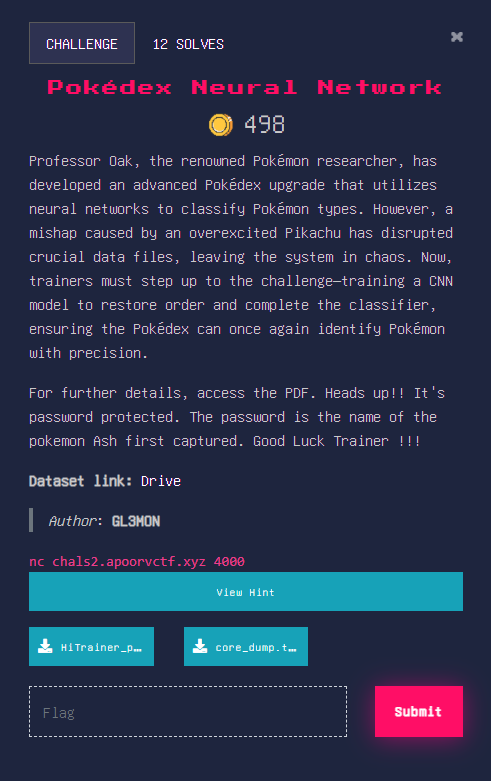

Professor Oak, the renowned Pokémon researcher, has developed an advanced Pokédex upgrade that utilizes neural networks to classify Pokémon types. However, a mishap caused by an overexcited Pikachu has disrupted crucial data files, leaving the system in chaos. Now, trainers must step up to the challenge—training a CNN model to restore order and complete the classifier, ensuring the Pokédex can once again identify Pokémon with precision.

For further details, access the PDF. Heads up!! It’s password protected. The password is the name of the pokemon Ash first captured. Good Luck Trainer !!!

HiTrainer_protected.pdf

0.13MB

core_dump.txt

0.00MB

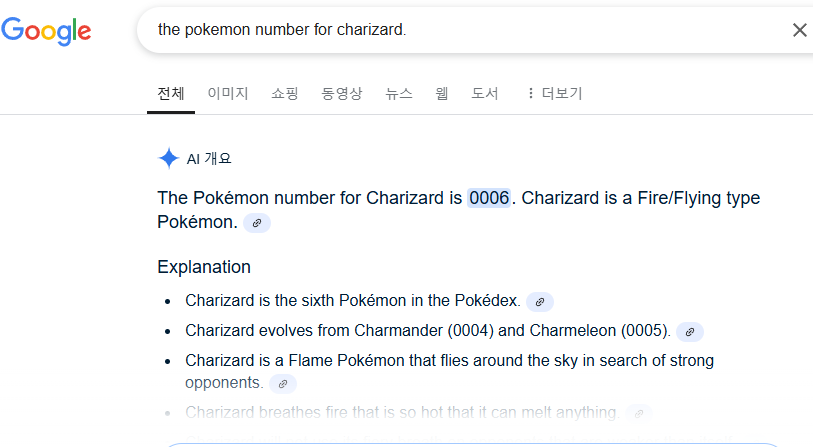

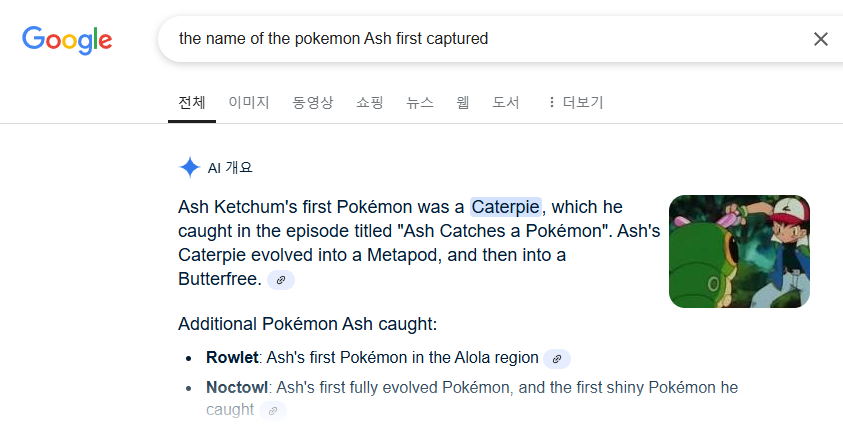

Google Search

PDF password Check

core_dump.txt

base64 decoding

PokemonCNN
├── Initial Input: (256, 256, 4)
│
├── Feature Extraction Layers
│   ├── Conv2D (4->32)
│   ├── BatchNorm2D
│   ├── ReLU Activation
│   ├── MaxPool2D(K Size = 3)
│   ├── Dropout (p=0.25)
│
├── Deeper Processing
│   ├── Conv2D(32->64)
│   ├── BatchNorm2D (64)
│   ├── ReLU Activation
│   ├── MaxPool2D(K Size = 3)
│   ├── Dropout (p=0.25)
│
├── More Feature Extraction
│   ├── Conv2D(64->128)
│   ├── BatchNorm2D
│   ├── ReLU Activation
│   ├── MaxPool2D(K Size = 3)
│   ├── Dropout (p=0.25)
│
├── Fully Connected Layers
│   ├── Flatten
│   ├── Linear (512 Neurons)
│   ├── BatchNorm1D
│   ├── Dropout (p=0.5)
│   ├── Linear
│   ├── Softmax Activation
│
└── Output: 18 classes

PDF Contents

Welcome, Pokémon Trainer! Hello there! Welcome to the world of Pokémon! ⚡ I’m Professor Oak, the leading Pokémon researcher, and I’ve been working on an advanced Pokédex upgrade that can automatically classify Pokémon types using cutting-edge neural networks. This breakthrough could revolutionize how trainers understand their Pokémon! BUT… there’s been a slight hiccup in the lab. My Pikachu got a little too excited and—well, let’s just say a few crucial data files were shocked into oblivion. ⚡? Now, the entire system is scrambled, and I need your help to restore order and complete the classifier! Your mission: Train a CNN model to classify Pokémon by type and help me get the Pokédex back on track. Are you up for the challenge, Trainer? Let’s GO! ? Notebook link: https://www.kaggle.com/code/gl3mon/apoorvquestion Dataset link: https://www.kaggle.com/datasets/gl3mon/apoorvctf

kaggle sign up

Greetings, Trainer!

I am Professor Oak, and I’m working on an exciting new upgrade for the Pokédex!

For years, the Pokédex has relied on manual data entry and preprogrammed knowledge to classify Pokémon types. But I believe it’s time for an upgrade—a smarter, more advanced system that can instantly recognize a Pokémon’s type just by looking at it!

To make this happen, I’m developing a powerful new Pokédex feature using Convolutional Neural Networks (CNNs). With this, the Pokédex will be able to analyze Pokémon images and determine their type with incredible accuracy. But I need the help of skilled trainers like you to fine-tune this cutting-edge technology!

Your mission:

Make sure you have imported the dataset required for training the model.

Train and refine the CNN model for Pokémon type classification.

Make sure you use the GPU T4x2 Accelerator to train the model.

Optimize its performance to make the Pokédex faster and smarter.

Help revolutionize Pokémon research with this groundbreaking upgrade!

Are you ready to be part of Pokédex history? Let’s get started! ??

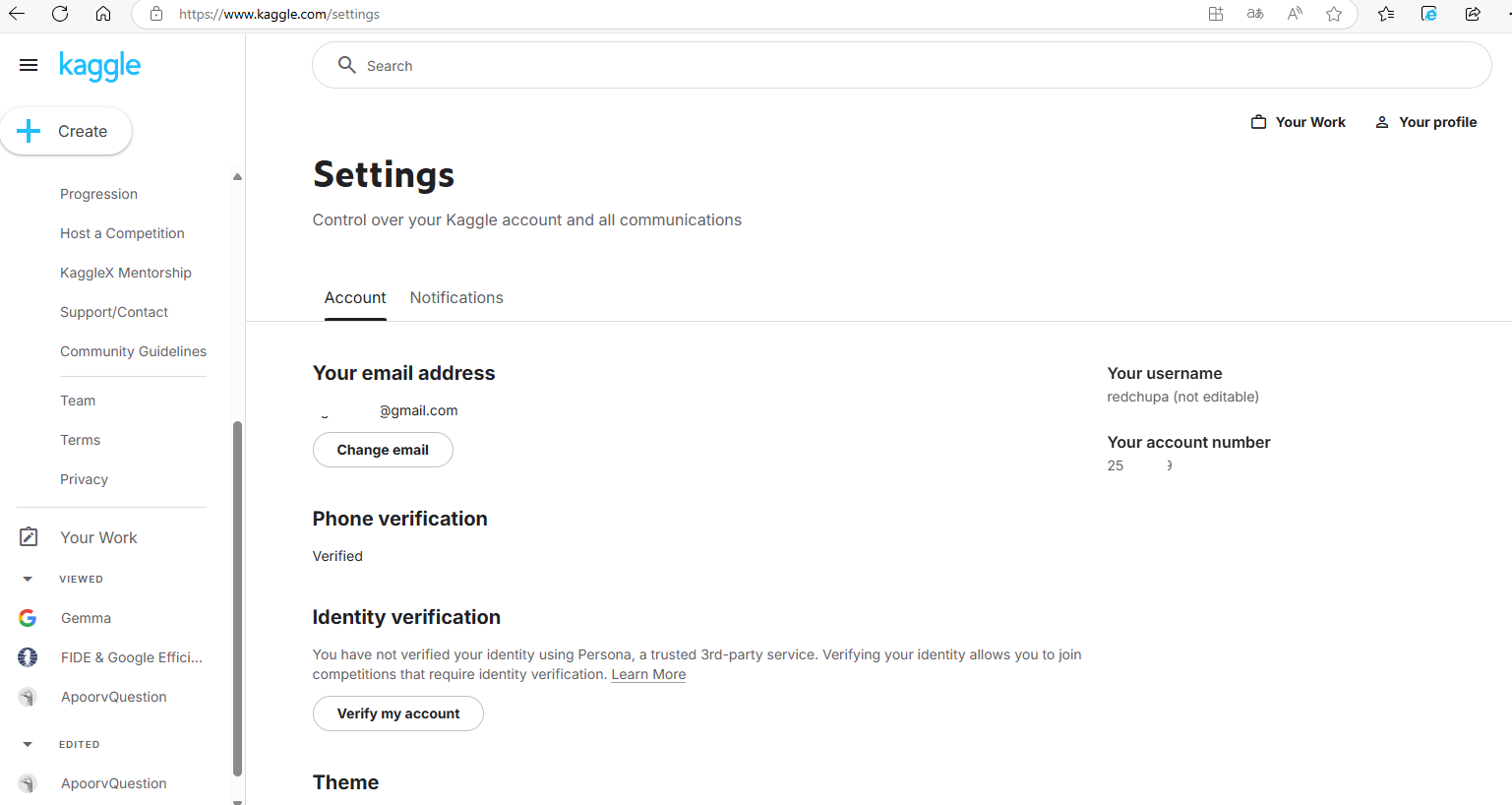

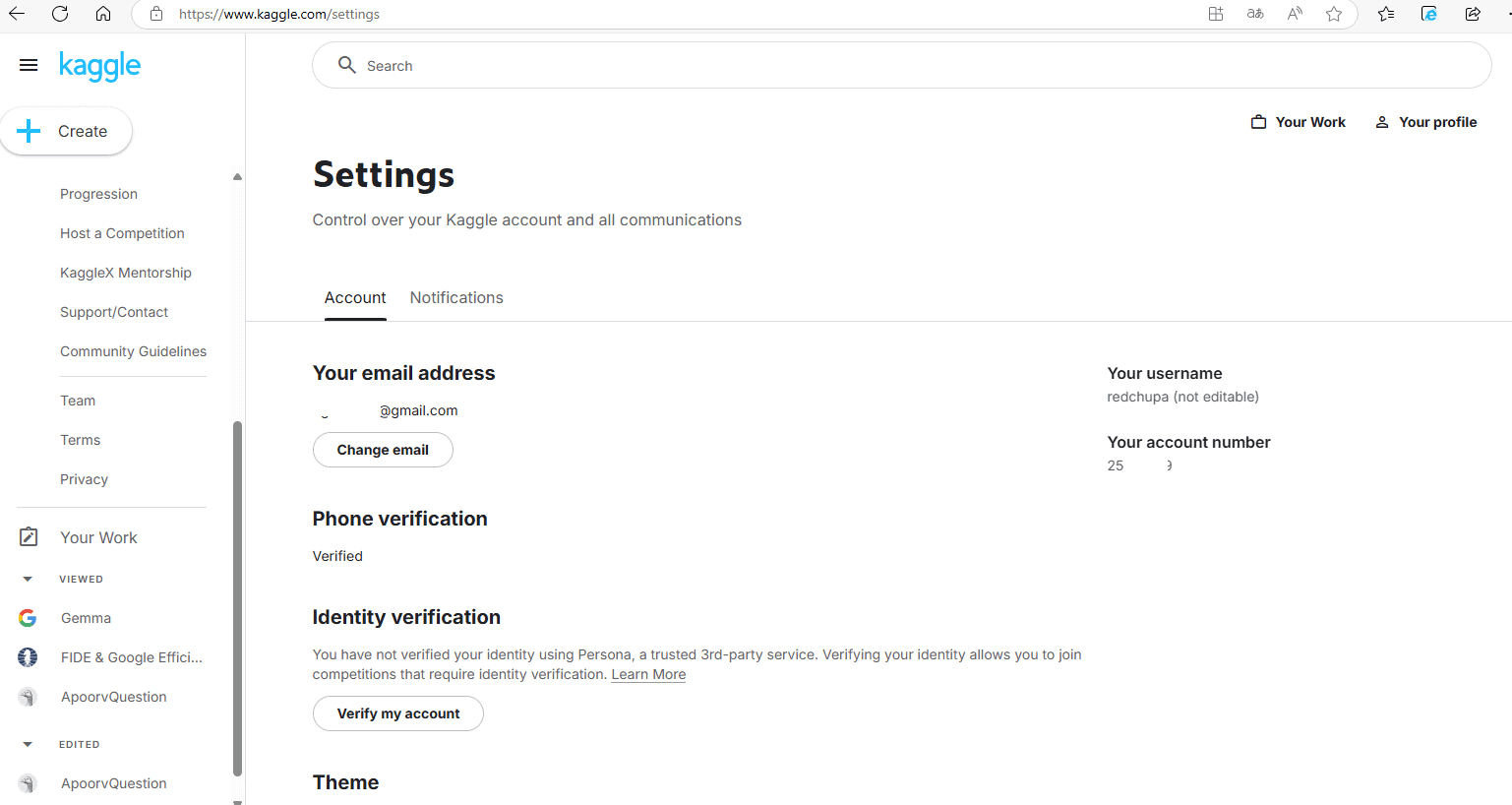

Personal mobile phone verification

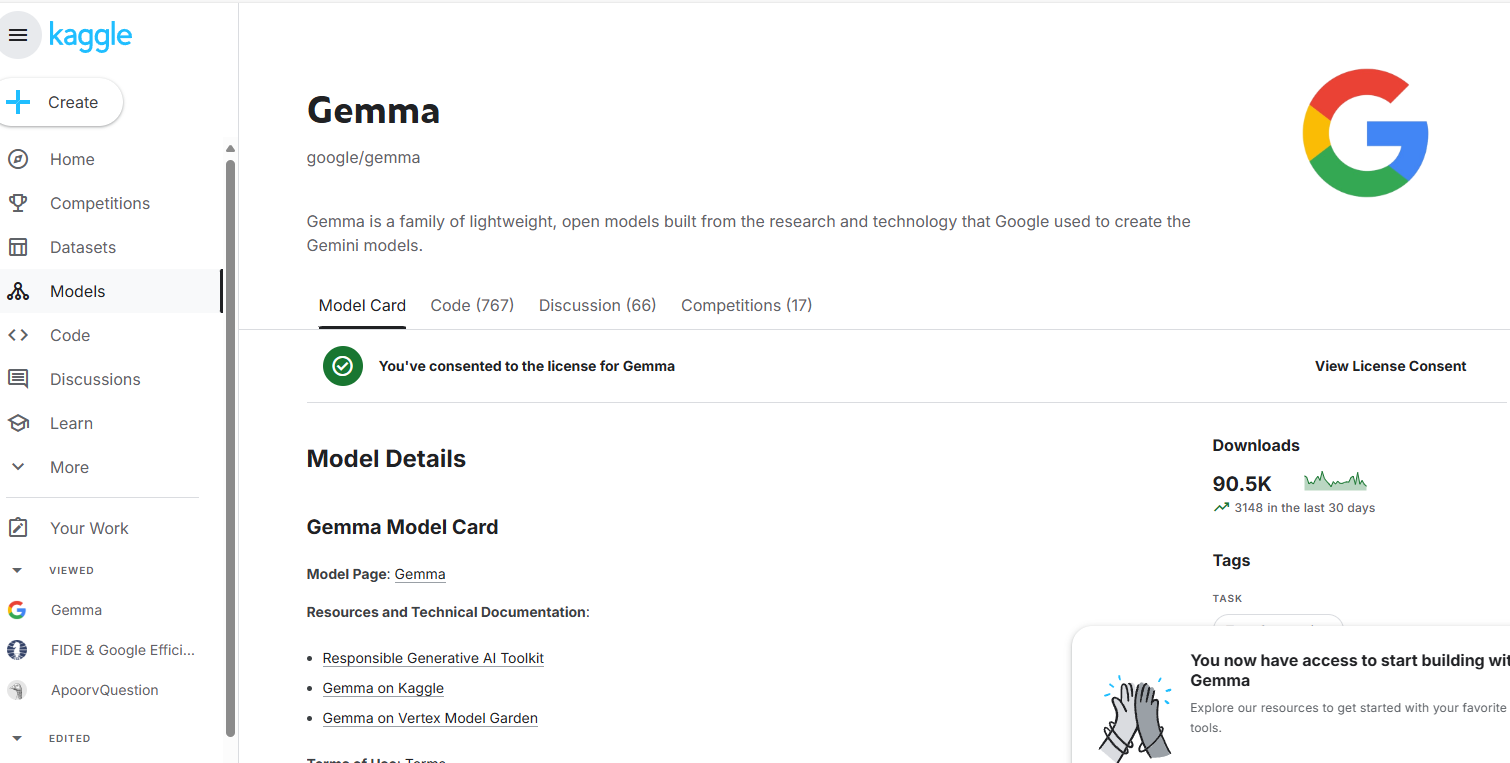

Next -> Gemma Download Use Agree

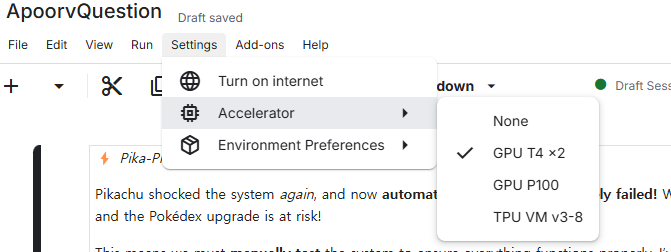

Accelerator GPU T4 x2 Active

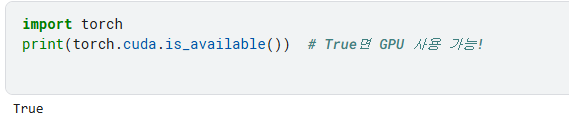

Accelerator GPU T4 x2 Use Check

seed hint

seed setting

Question 1: 6

Next -> Data Set

class CTFDataset(Dataset):
    def __init__(self, annotation_file, img_dir, transform = None, target_transform = None):
        self.img_labels = pd.read_csv(annotation_file, index_col=0)
        self.label_mapping = {
            'Bug': 0, 'Dark': 1, 'Dragon': 2, 'Electric': 3, 'Fairy': 4,
            'Fighting': 5, 'Fire': 6, 'Flying': 7, 'Ghost': 8, 'Grass': 9,
            'Ground': 10, 'Ice': 11, 'Normal': 12, 'Poison': 13, 'Psychic': 14,
            'Rock': 15, 'Steel': 16, 'Water': 17
        }
        self.img_labels['class'] = self.img_labels['type'].map(self.label_mapping)
        self.img_dir = img_dir
        self.transform = transform
        self.target_transform = target_transform

    def __len__(self):
        return len(self.img_labels)

    def __getitem__(self, idx):
        img_path = os.path.join(self.img_dir, self.img_labels.iloc[idx]['type'], f'{self.img_labels.iloc[idx]["pkn"]}'+'.png')
        image = None
        try:
            image = read_image(img_path).to(pt.float32)
        except:
            image = pt.zeros(4, 256, 256)
        label = self.img_labels.iloc[idx]['class']
        if self.transform:
            image = self.transform(image)
        if self.target_transform:
                label = self.target_transform(label)
        return image, label

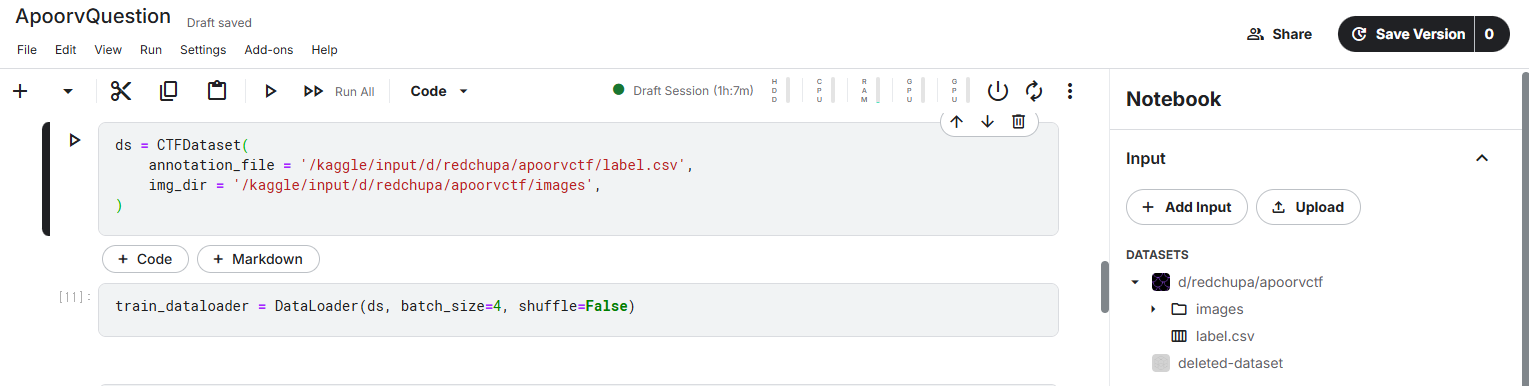

ds = CTFDataset(
    annotation_file = '/kaggle/input/d/redchupa/apoorvctf/label.csv',
    img_dir = '/kaggle/input/d/redchupa/apoorvctf/images',
)

File Upload

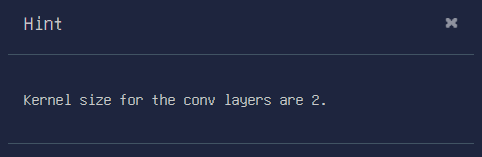

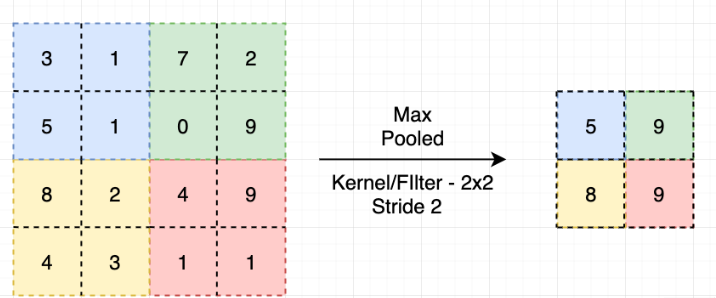

hint: kernel_size=2

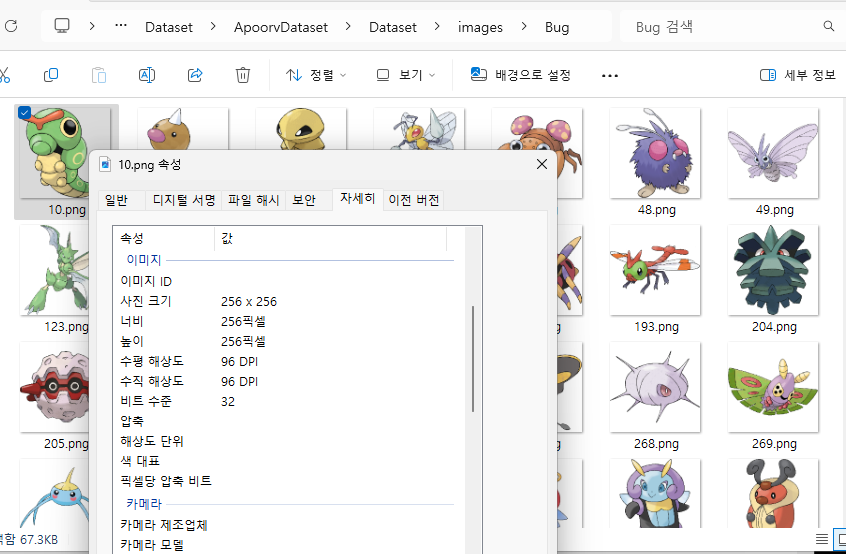

img format

Initial Input: (256, 256, 4)

class PokemonCNN(nn.Module):
    def __init__(self):
        super().__init__()
        # 256 256 4
        self.conv1 = nn.Conv2d(4, 32, kernel_size=2) # 255 255 32
        self.bn1 = nn.BatchNorm2d(32)
        self.relu = nn.ReLU()
        self.pool = nn.MaxPool2d(kernel_size=3) # 85 85 32
        self.drop1 = nn.Dropout(0.25)

        self.conv2 = nn.Conv2d(32, 64, kernel_size=2) # 84 84 64
        self.bn2 = nn.BatchNorm2d(64)
        self.relu2 = nn.ReLU()
        self.pool2 = nn.MaxPool2d(kernel_size=3) # 28 28 64
        self.drop2 = nn.Dropout(0.25)

        self.conv3 = nn.Conv2d(64, 128, kernel_size=2) # 27 27 128
        self.bn3 = nn.BatchNorm2d(128)
        self.relu3 = nn.ReLU()
        self.pool3 = nn.MaxPool2d(kernel_size=3) # 9 9 128
        self.drop3 = nn.Dropout(0.25)

        self.flatten = nn.Flatten()
        self.fc1 = nn.Linear(10368, 512)
        self.bn4 = nn.BatchNorm1d(512)
        self.drop4 = nn.Dropout(0.5)
        self.fc2 = nn.Linear(512, 18)
        self.softmax = nn.Softmax()

    def forward(self, x):
        x = self.pool(F.relu(self.bn1(self.conv1(x))))
        x = self.drop1(x)

        x = self.pool(F.relu(self.bn2(self.conv2(x))))
        x = self.drop2(x)

        x = self.pool(F.relu(self.bn3(self.conv3(x))))
        x = self.drop3(x)

        x = self.flatten(x)
        x = self.fc1(x)
        x = self.bn4(x)
        x = self.drop4(x)
        x = self.fc2(x)
        x = self.softmax(x)
        return x

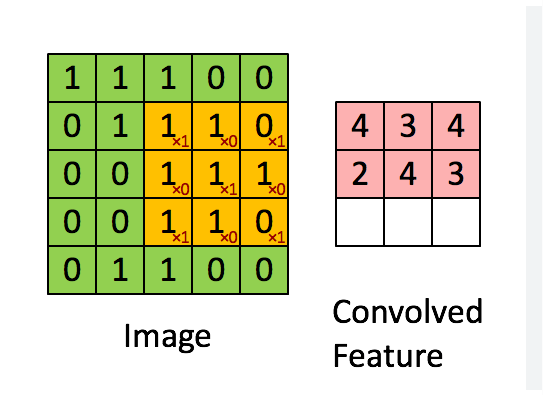

Conv2d Analyze
